Laikiklis Corab System PB-068

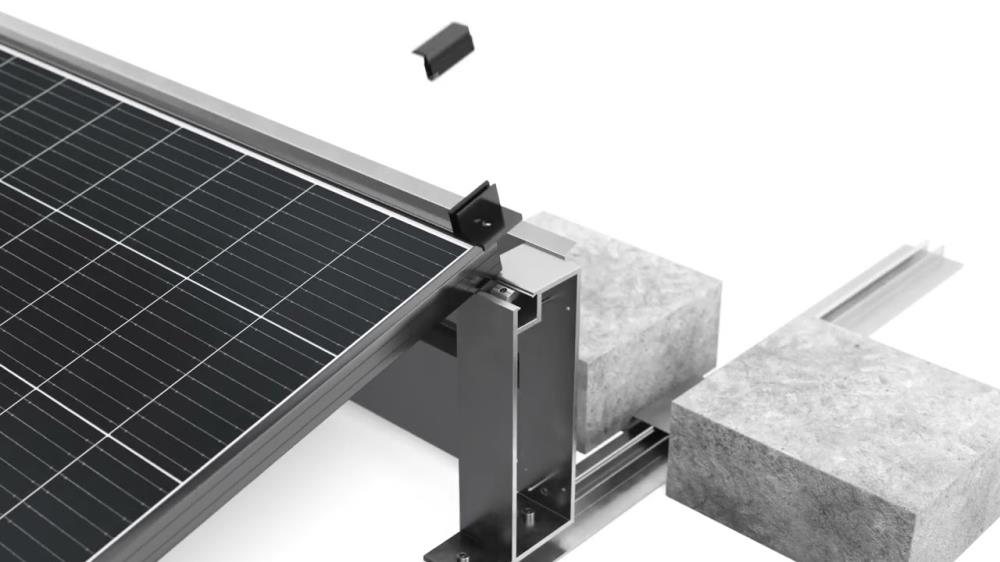

This is one side mounting system kit. Kit includes: 2 rails, 1 upper fastener, 1 lower fastener, 2 ballast platforms (ballast itself is NOT included), 2 mid clamps, 1 windshield, 5 KLIK nuts for rails, 2 screws for windshields, 5 screws for clamps and upper/lower fasteners.

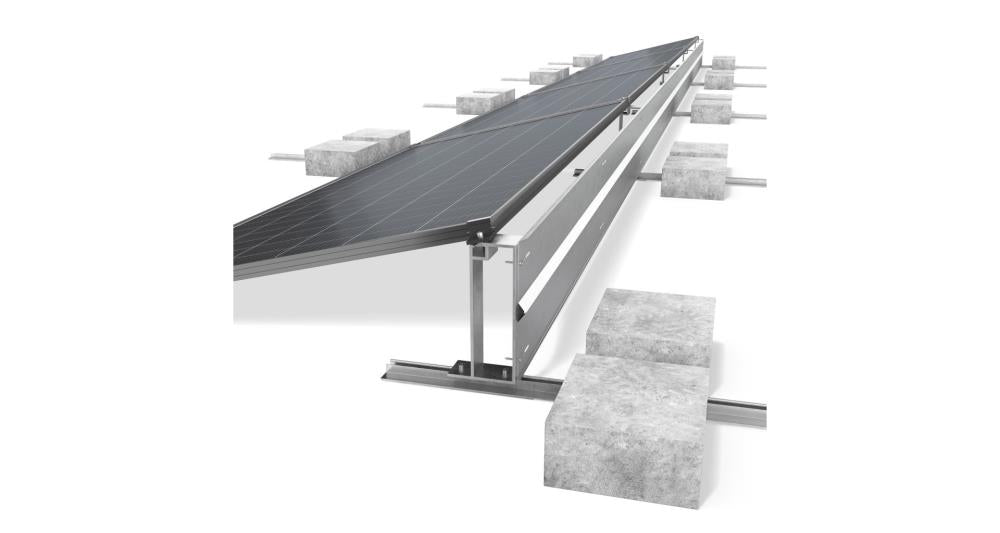

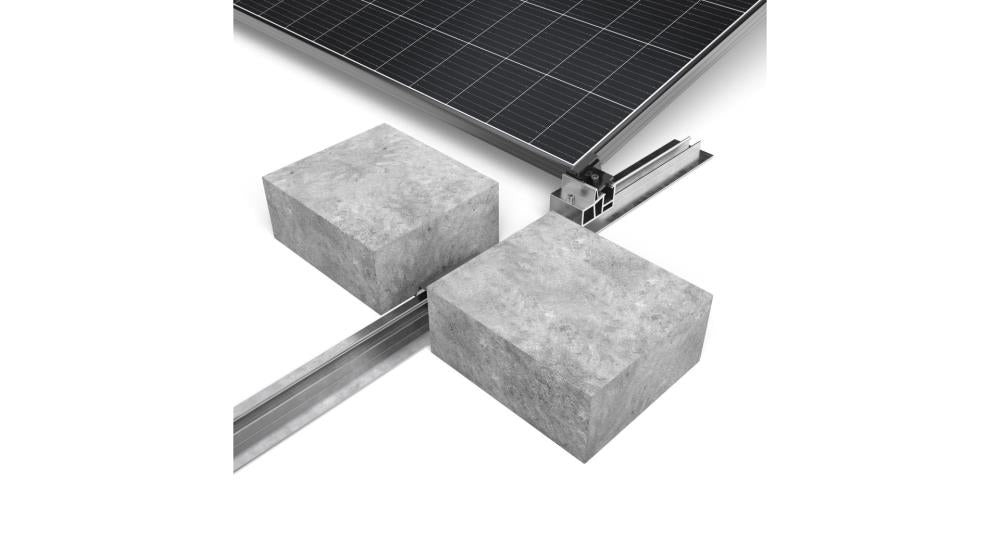

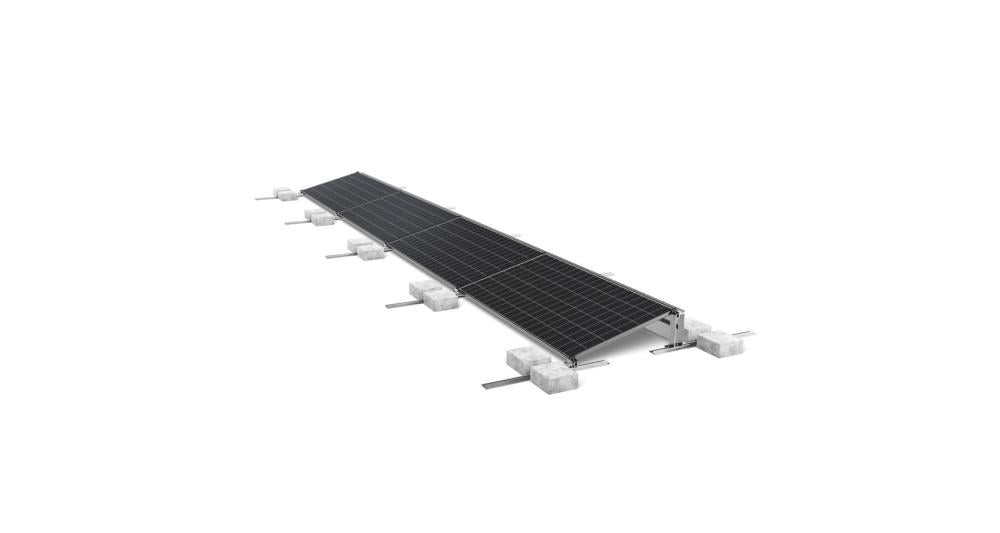

Corab PB-068 system is a ballast construction for flat roofs. Slope angle is 15 degrees. It is made of high quality aluminum and stainless steel. It allows modules to be south oriented. The system also includes a windbrace. In order to protect roof from possible damage, special insulation was used. The rows can be joined together.

Wind shield - Yes

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• For modules from kW
  n/a
• For modules upto kW
  n/a
• For modules width upto mm
  1100
• Installation
  Ballast
• Layout
  Portrait
• Manufacturer
  Corab
• Material
  Aluminium / Stainless steel
• Model
  PB-068
• Modules per row
  n/a
• Module orientation
  South
• Product type
  Mounting bracket
• Surface type
  n/a
• System type
  Flat roof
• Tilt angle degree
  15
• Warranty years
  10
