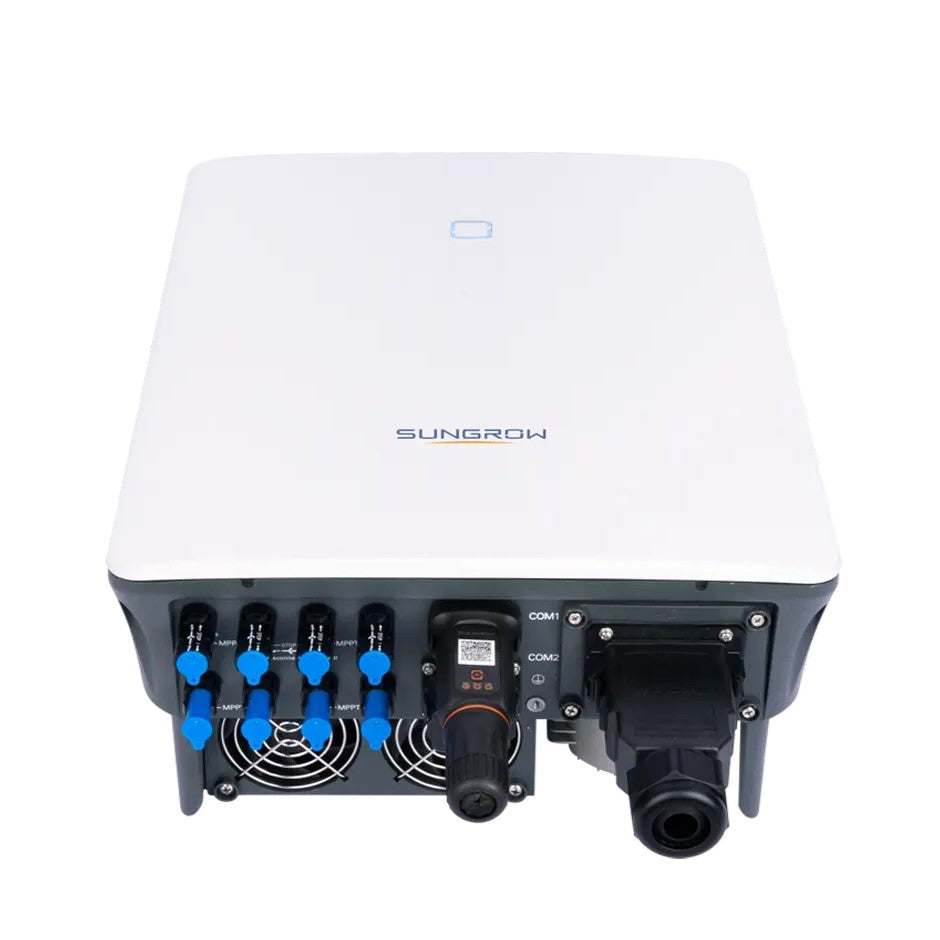

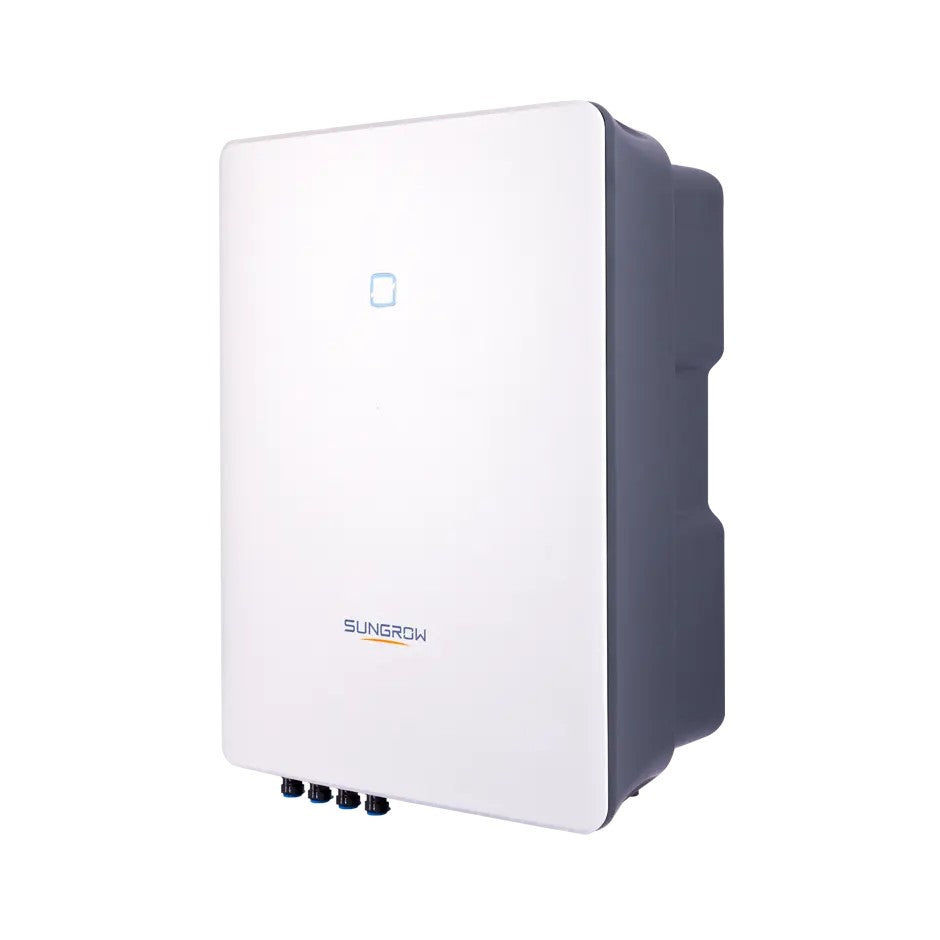

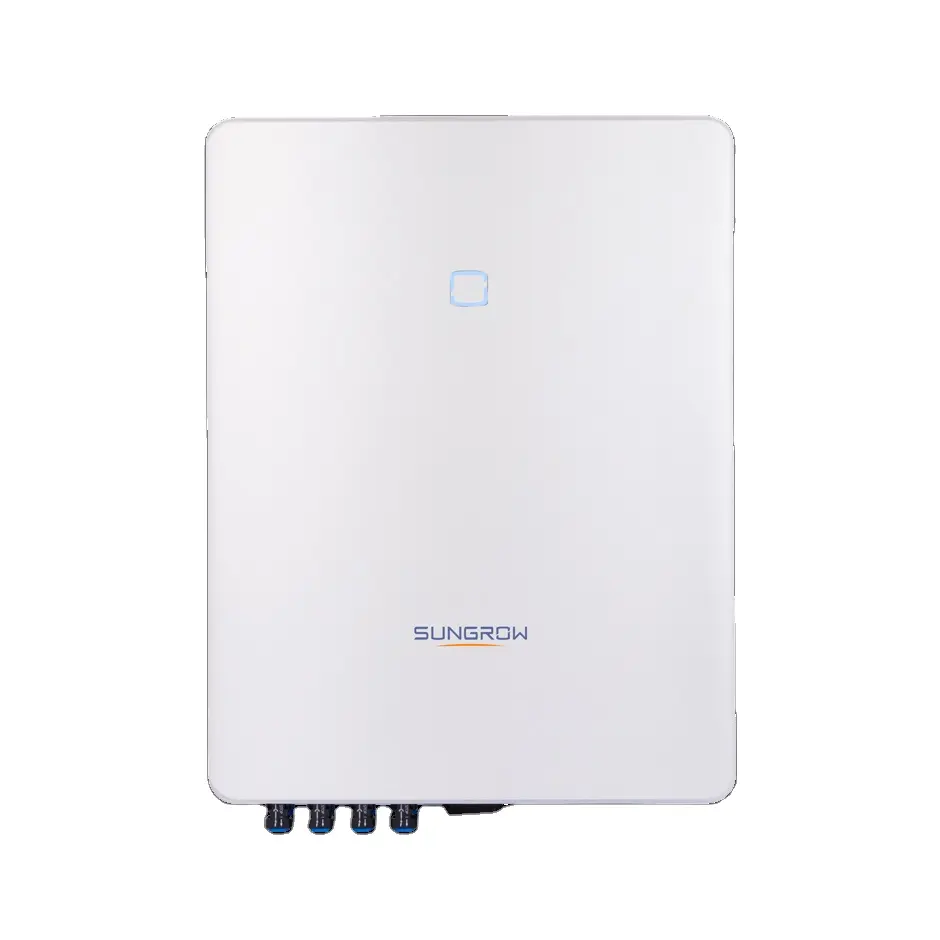

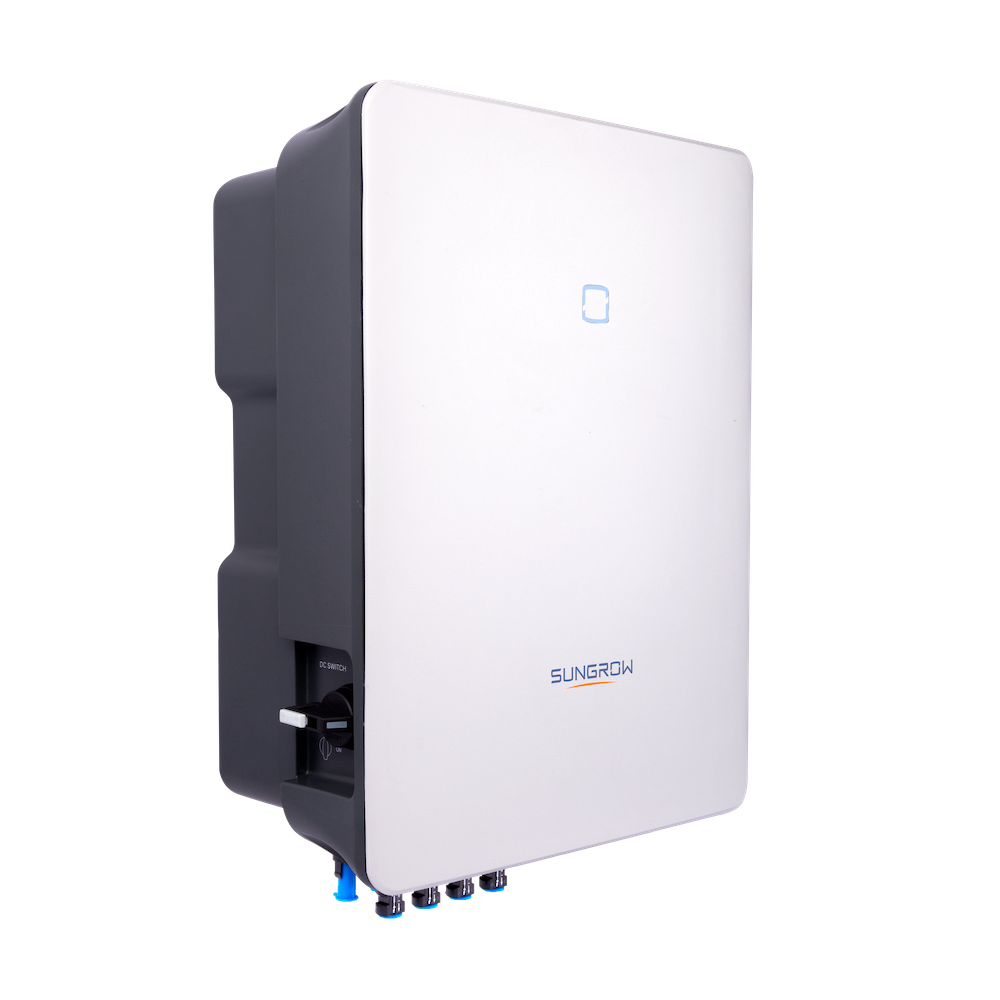

Inverteris Sungrow SG20RT

Multi-MPPT String Inverter for 1000 Vdc System

High Yield:

• Lower startup & wider MPPT voltage
• Compatible with bifacial modules
• Built-in PID recovery function

Safe and Durable:

• Quick arc fault circuit interrupter
• Build-in Type II DC & AC SPD
• High anti-corrosion rating C5

Smart Management:

• Smart IV curve scanning
• 24 / 7 Live monitoring
• Remote firmware updates

Easy and User Friendly:

• 21 kg compact design
• Unique push-in connectors
• Fast and easy commissioning via App

• Allow sale if not in stock
  Yes
• Delivery up to working days
  2
• European efficiency percent
  98.1
• Input voltage range V
  160 - 1000
• Inverter type
  Standard
• Item size LxWxH mm
  370 x 480 x 195
• Item weight kg
  21
• Manufacturer
  Sungrow
• Max efficiency percent
  98.5
• Max input current A
  25 / 25
• Max input power kW
  30
• Max input voltage V
  1100
• Model
  SG20RT
• MPPT number
  2
• Operating temperature C
  -25 / +60
• Output power kW
  20
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP65
• Warranty extension 10y
• Warranty extension 15y
• Warranty extension 20y
• Warranty years
  10

Gamintojo specifikacija
