Inverteris SolarEdge SE100K Synergy

Powered by unique pre-commissioning process for rapid system installation

Pre-commissioning feature for automated validation of system components and wiring during the site installation process and prior to grid connection

Easy 2-person installation with lightweight, modular design

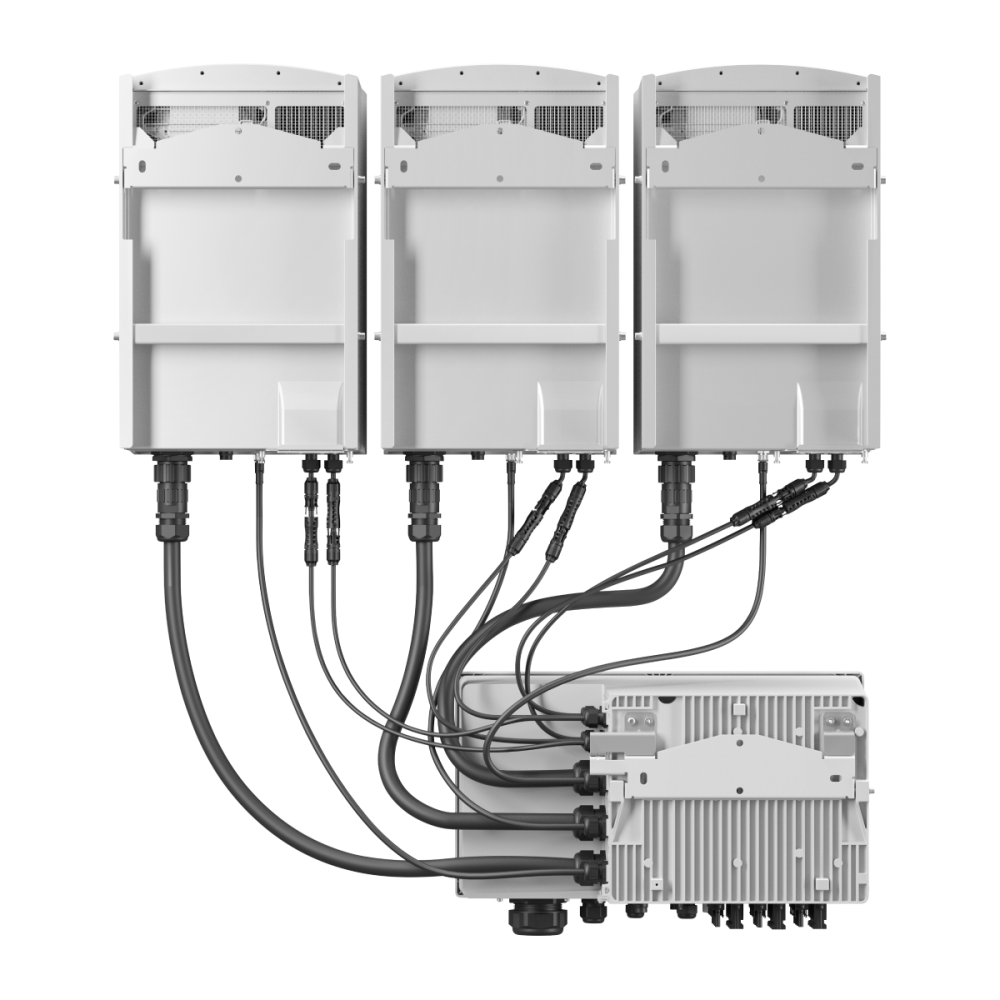

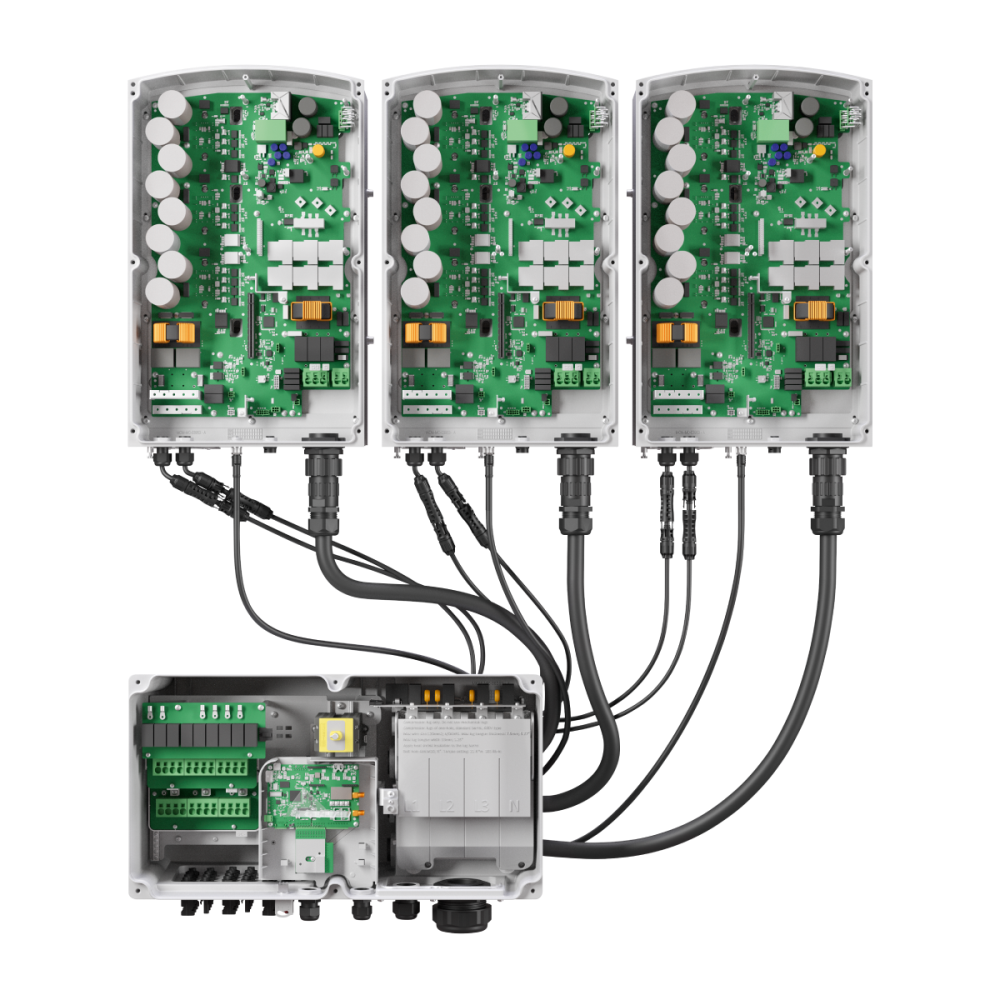

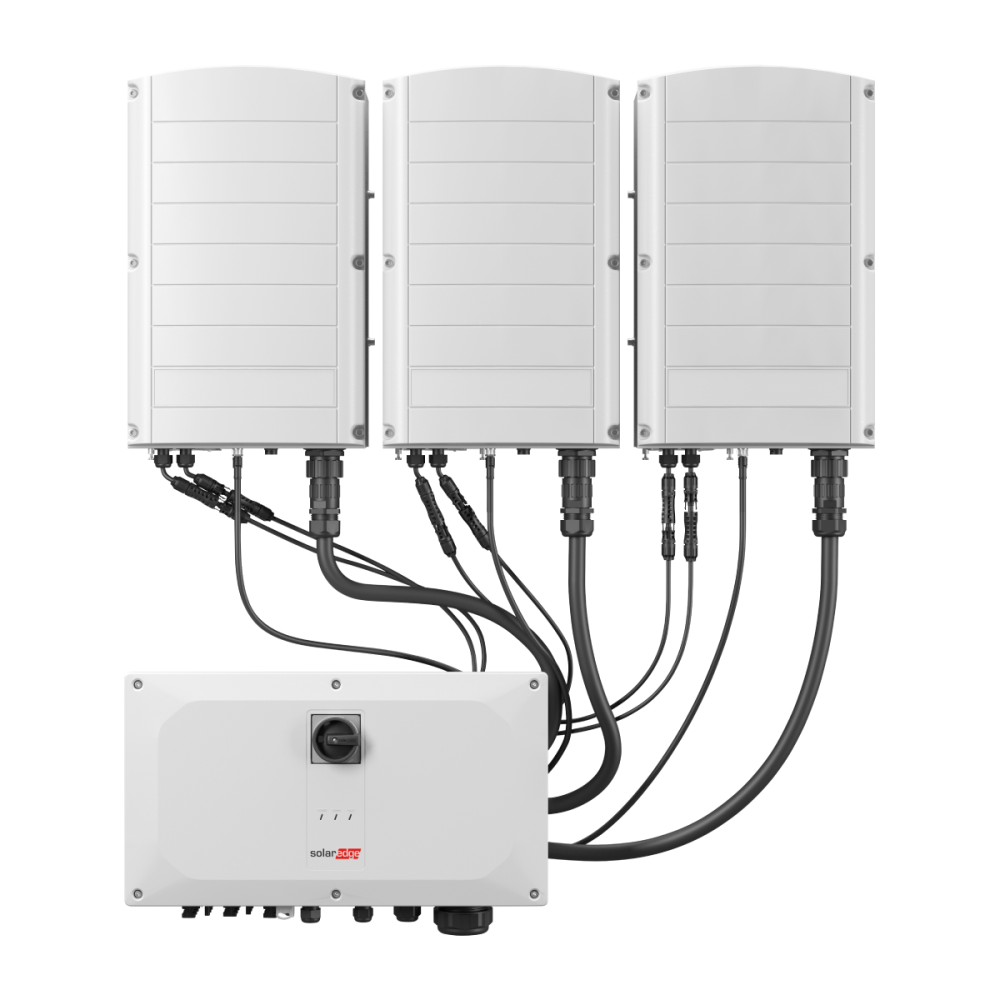

Inverter consists of 3 Synergy Units and one Synergy Manager

Independent operation of each Synergy Unit enables higher uptime and easy serviceability

Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety

Built-in arc fault protection and optional rapid shutdown

Built-in PID mitigation for maximized system performance

Monitored (only for DC and AC SPDs) and field-replaceable surge protection devices, to better withstand surges caused by lightning or other events: integrated RS485 and Type 2 DC SPDs, optional Type 2 AC SPD

Optional integrated DCsafety switch eliminates the need for external DC isolators

Built-in module-level monitoring with Ethernet or cellular communication for full system visibility

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• European efficiency percent
  98.0
• Input voltage range V
  680 - 1000
• Inverter type
  Standard
• Item size LxWxH mm
  Unit: 558 x 328 x 273 / Manager: 360 x 560 x 295
• Item weight kg
  Synergy Unit: 32 / Synergy Manager: 18
• Manufacturer
  SolarEdge
• Max efficiency percent
  98.3
• Max input current A
  3 x 48.25
• Max input power kW
  Inverter: 150 / Synergy Unit: 3 x 50
• Max input voltage V
  1000
• Model
  SE100K Synergy
• MPPT number
  0
• Operating temperature C
  -40 / +60
• Output power kW
  100
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP65
• Warranty extension 15y
• Warranty extension 20y
• Warranty years
  12 (optional up to 20)

Gamintojo specifikacija
