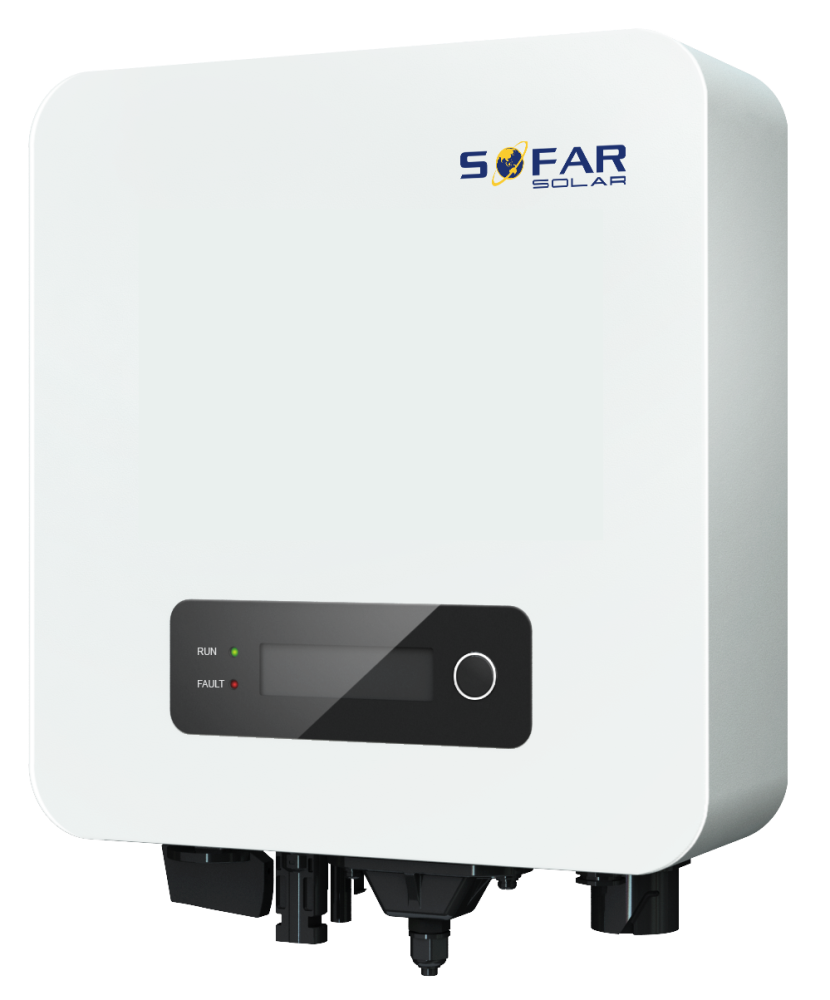

Inverteris Sofar 3300TL-G3

Single-Phase

Single-MPPT

Maximum efficiency up to 97.7%

140% DC overload

RS485

Lightweight, quick and easy to install

IP65 design for outdoor

Built-in zero export function

Wi-Fi included

Compact single-phase inverters for small grid-connected PV systems

The SOFAR 1100...3300TL-G3 is a polished compact and lightweight solar inverter for the smallest single-phase PV systems.

With an efficiency of up to 97.7%, it maximizes the energy yield of your PV system. The integrated zero-export function enables the user to limit the grid feed-in power by just adding a current transformer to the system.

The inverter also comes with a WiFi-stick to easily connect the inverter to the SOFAR View monitoring portal.

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• European efficiency percent
  97.2
• Input voltage range V
  50 - 550
• Inverter type
  Standard
• Item size LxWxH mm
  321 x 260.5 x 131.5
• Item weight kg
  6.3
• Manufacturer
  Sofar Solar
• Max efficiency percent
  97.7
• Max input current A
  12
• Max input power kW
  4.5
• Max input voltage V
  550
• Model
  Sofar 3300TL-G3
• MPPT number
  1
• Operating temperature C
  -30 / +60
• Output power kW
  3.3
• Phase number
  1
• Product type
  Inverter
• Protection degree
  IP65
• Warranty extension 10y
• Warranty extension 15y
  Garantijos pratęsimas Sofar 3300TL-G3 15y
• Warranty extension 20y
  Garantijos pratęsimas Sofar 3300TL-G3 20y
• Warranty years
  10 (optional up to 20)

Gamintojo specifikacija
