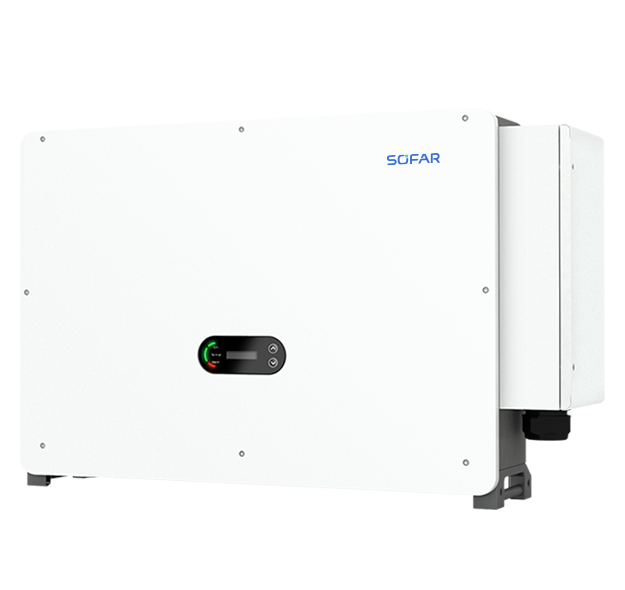

Inverteris Sofar 255KTL-HV

Three-Phase

Twelve MPPTs

12 MPPTs with max. efficiency up to 99.02%

PID recovery

Type II SPD for both DC and AC

AC / DC dual power supply redundant design, 24-hour status monitoring

I-V curve scanning function

IP66 and C5 protection design for outdoor

Compatible with Al and Cu AC cables

Touch free commissioning and remote firmware upgrade

Wi-Fi included

Powerful solution for 1500 V utility-scale PV plants

The SOFAR 255KTL-HV inverter series is the latest addition of string inverters to SOFAR's product portfolio. This inverter is made for large ground-mounted 1500 Vdc systems, and supports connecting 800 Vac to the grid.

With 12 MPP trackers and increased DC current capability, the inverter supports the latest solar panel specifications and eliminates the need of PV fuses. The IP66/C5-rated housing of the inverter is also optimized for easy handling on site. Surge protection type II is integrated on both DC and AC side.

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• European efficiency percent
  98.7
• Input voltage range V
  500 - 1500
• Inverter type
  Standard
• Item size LxWxH mm
  1100.5 x 713.5 x 368
• Item weight kg
  99
• Manufacturer
  Sofar Solar
• Max efficiency percent
  99.02
• Max input current A
  12 x 30
• Max input power kW
  n/a
• Max input voltage V
  1500
• Model
  Sofar 255KTL-HV
• MPPT number
  12
• Operating temperature C
  -30 / +60
• Output power kW
  255
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP66
• Warranty extension 10y
• Warranty extension 15y
  Garantijos pratęsimas Sofar 255KTL-HV 15y
• Warranty extension 20y
  Garantijos pratęsimas Sofar 255KTL-HV 20y
• Warranty years
  10 (optional up to 20)

Gamintojo specifikacija
