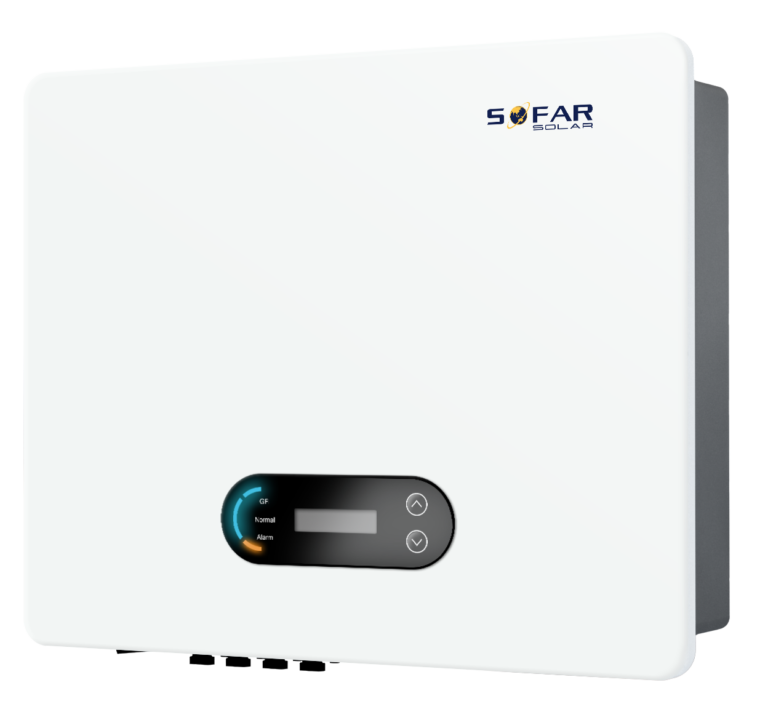

Inverteris Sofar 20KTLX-G3

Three-Phase

Dual-MPPT

Maximum efficiency 98.6%

Maximum DC input voltage 1100V

Type II SPD for both DC and AC

110% long-time overload ability

Low start-up voltage, wide MPPT voltage

Smart string level monitoring

Remote firmware upgrade

Wi-Fi included

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• European efficiency percent
  98.2
• Input voltage range V
  140 - 1000
• Inverter type
  Standard
• Item size LxWxH mm
  520 x 430 x 189
• Item weight kg
  22
• Manufacturer
  Sofar Solar
• Max efficiency percent
  98.6
• Max input current A
  26 / 26
• Max input power kW
  30
• Max input voltage V
  1100
• Model
  Sofar 20KTLX-G3
• MPPT number
  2
• Operating temperature C
  -30 / +60
• Output power kW
  20
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP65
• Warranty extension 10y
• Warranty extension 15y
  Garantijos pratęsimas Sofar 20KTLX-G3 15y
• Warranty extension 20y
  Garantijos pratęsimas Sofar 20KTLX-G3 20y
• Warranty years
  10 (optional up to 20)

Gamintojo specifikacija
