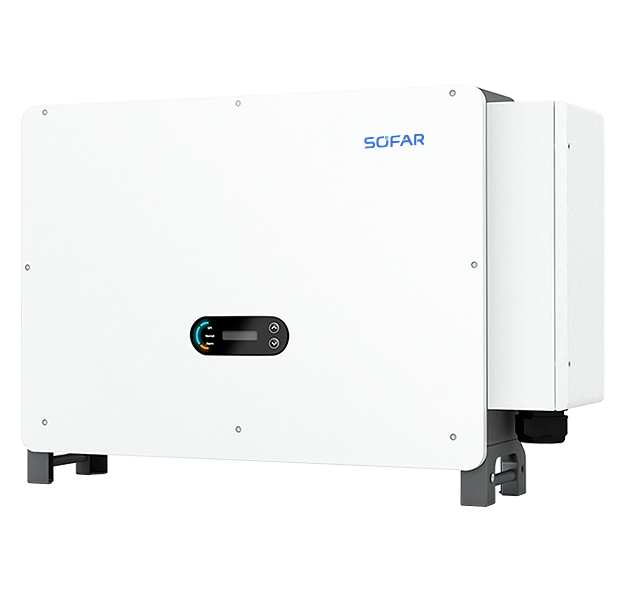

Inverteris Sofar 125KTLX-G4

Three-Phase

Number of MPPTs: 10

Max. input MPPT current: 40A

Max. efficiency up to 98.8%

IP66 and C5 protection

Maximum 10 MPP trackers with 150%+ DC overload

Type II SPD for both DC and AC

AC / DC dual power supply redundant design, 24-hour status monitoring

I-V curve scanning function

Supports Modbus Communication, external WiFi

Possesses AFCI functionality, providing a guarantee for the security of commercial & industrial roofs

Integrated LCD display with a user-friendly interface

WiFi included

• Allow sale if not in stock
  Yes
• Delivery up to working days
  10
• European efficiency percent
  98.3
• Input voltage range V
  180 - 1000
• Inverter type
  Standard
• Item size LxWxH mm
  970 x 695 x 325
• Item weight kg
  75
• Manufacturer
  Sofar Solar
• Max efficiency percent
  98.6
• Max input current A
  10 x 40
• Max input power kW
  n/a
• Max input voltage V
  1100
• Model
  Sofar 125KTLX-G4
• MPPT number
  10
• Operating temperature C
  -30 / +60
• Output power kW
  125
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP66
• Warranty extension 10y
• Warranty extension 15y
  Garantijos pratęsimas Sofar 125KTLX-G4 15y
• Warranty extension 20y
  Garantijos pratęsimas Sofar 125KTLX-G4 20y
• Warranty years
  10 (optional up to 20)
