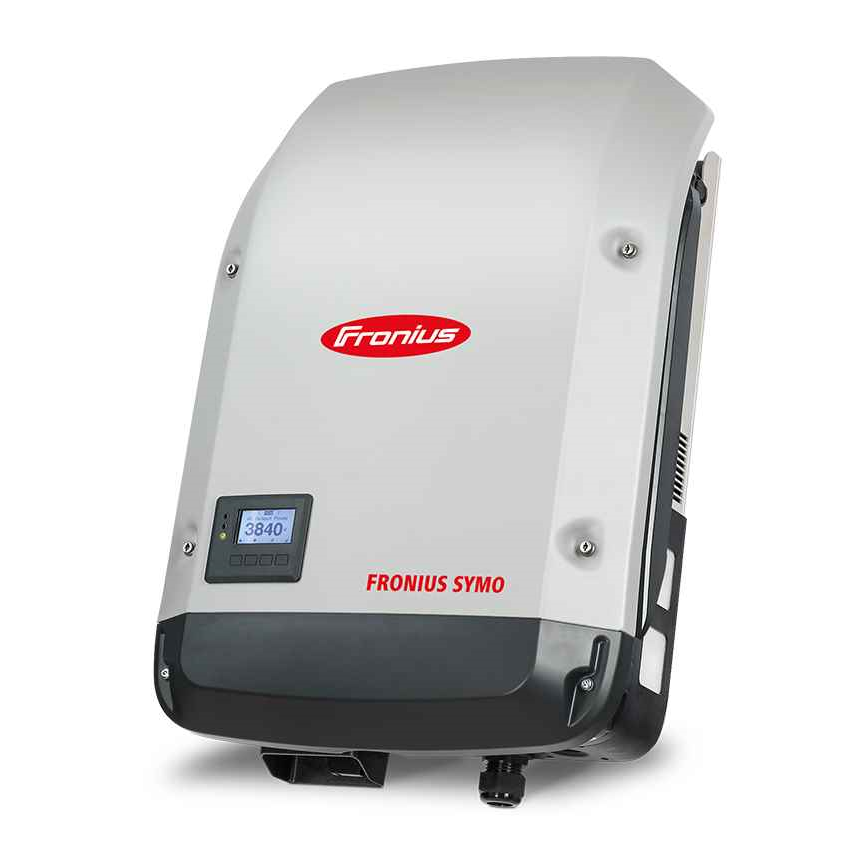

Inverteris Fronius Symo 3.0-3-M

SnapINverter technology

Integrated data communication

SuperFlex Design

Dynamic Peak Manager

Smart Grid Ready

Zero feed-in

With power categories ranging from 3.0 to 20.0 kW, the transformerless Fronius Symo is the three-phase inverter for systems of every size. Owing to the SuperFlex Design, the Fronius Symo is the perfect answer to irregularly shaped or multi-oriented roofs.

The standard interface to the internet via WLAN or Ethernet and the ease of integration of third-party components make the Fronius Symo one of the most communicative inverters on the market. Furthermore, the meter interface permits dynamic feed-in management and a clear visualisation of the consumption overview.

• Allow sale if not in stock
  Yes
• Delivery up to working days
  2
• European efficiency percent
  96.5
• Input voltage range V
  150 - 1000
• Inverter type
  Standard
• Item size LxWxH mm
  645 x 431 x 204
• Item weight kg
  19.9
• Manufacturer
  Fronius
• Max efficiency percent
  98.0
• Max input current A
  16 / 16
• Max input power kW
  6
• Max input voltage V
  1000
• Model
  Symo 3.0-3-M
• MPPT number
  2
• Operating temperature C
  -25 / +60
• Output power kW
  3
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP65
• Warranty extension 15y
• Warranty extension 20y
• Warranty years
  5 (optional up to 20)

Gamintojo specifikacija
