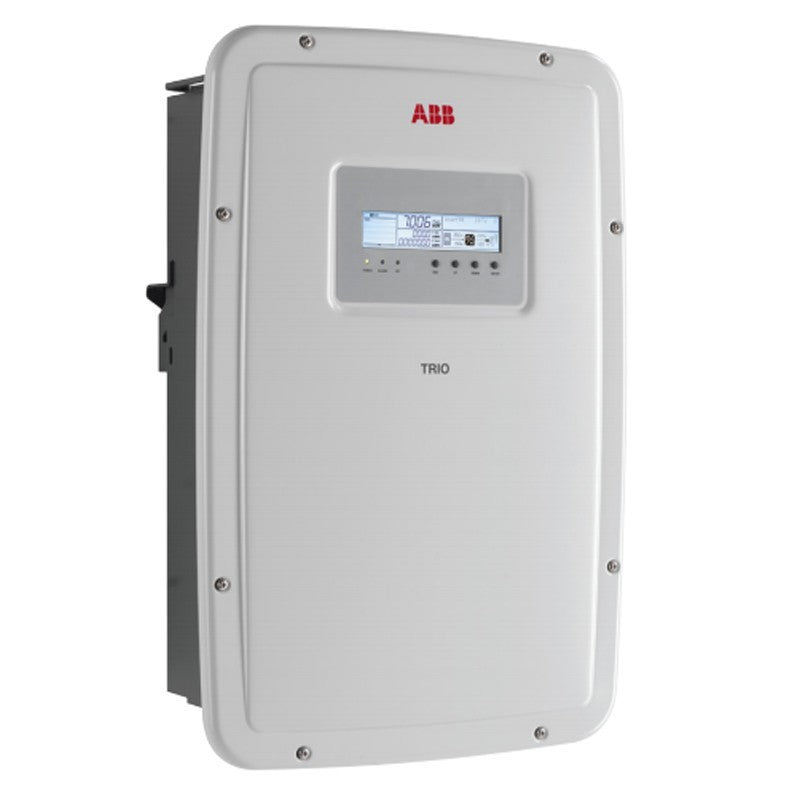

Inverteris ABB TRIO-7.5-TL-OUTD

The all-in-one residential three-phase TRIO-7.5-TL-OUTD inverter deliver performance, ease of use and installation, monitoring and control. With their 98% peak efficiency and wide input voltage range, the residential TRIO inverter means flexible installations and powerful output.

Highlights

• Three-phase bridge topology for DC/AC output converter

• Transformerless topology

• Two independent MPPT channels for TRIO-7.5 or TRIO-8.5 allow optimal energy harvesting from two subarrays oriented in different directions (one MPPT channel for TRIO-5.8)

• Flat efficiency curves ensure high efficiency at all output levels enabling consistent and stable performance across the entire input voltage and output power range

• Wide input voltage range

• Remote inverter upgrade

• Reactive power management

• Natural convection cooling for maximum reliability

• Outdoor enclosure for unrestricted use under any environmental conditions (IP65)

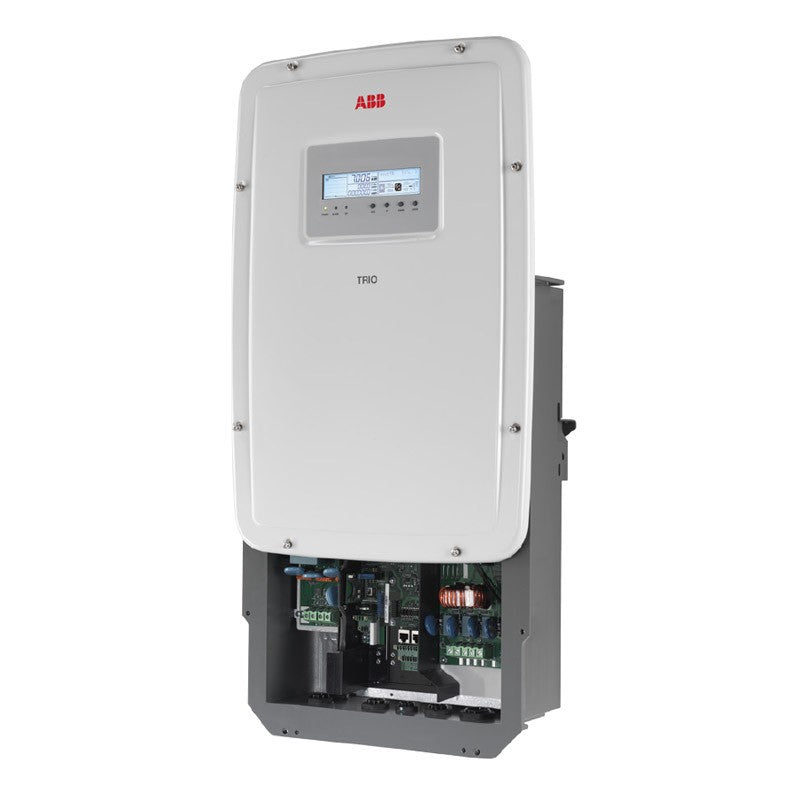

• Sliding cover for the easiest installation and maintenance

• Data logger and smart grid functionalities integrated on expansion cards:

• PMU expansion card option, with external sensor inputs for monitoring environmental conditions and additional RS-485 for Modbus protocol
• Ethernet expansion card option with integrated web server and remote monitoring capability via web portal (Modbus/TCP supported)

• Availability of auxiliary DC output voltage (24 V, 100 mA)

• Allow sale if not in stock
  Yes
• Delivery up to working days
  2
• European efficiency percent
  97.5
• Input voltage range V
  320 - 800
• Inverter type
  Standard
• Item size LxWxH mm
  641 x 429 x 220
• Item weight kg
  28
• Manufacturer
  ABB
• Max efficiency percent
  98.0
• Max input current A
  30 / 15
• Max input power kW
  7.65
• Max input voltage V
  1000
• Model
  TRIO-7.5-TL-OUTD
• MPPT number
  2
• Operating temperature C
  -25 / +60
• Output power kW
  7.5
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP65
• Warranty extension 10y
• Warranty extension 15y
• Warranty extension 20y
• Warranty years
  5 (optional up to 10)
