Inverteris ABB TRIO-5.8-TL-OUTD

Naujas, neišpakuotas inverteris už specialią kainą!

Parduodamas naujas ir neišpakuotas inverteris, kuris ilgą laiką stovėjo sandėlyje, todėl jam taikoma ypatinga nuolaida.

Dėl ilgesnio laikymo sandėlyje inverterio būklė gali būti netobula (pakuotės išorė gali turėti smulkių defektų), tačiau pats įrenginys yra naujas ir niekada nenaudotas.

⚠️ Atkreipkite dėmesį:

• Prekė yra nukainota, todėl atgal nepriimama.
• Įsitikrinkite, kad produktas atitinka jūsų poreikius prieš pirkdami.

Puiki proga įsigyti kokybišką įrangą už gerokai mažesnę kainą! Jei turite klausimų – susisiekite.

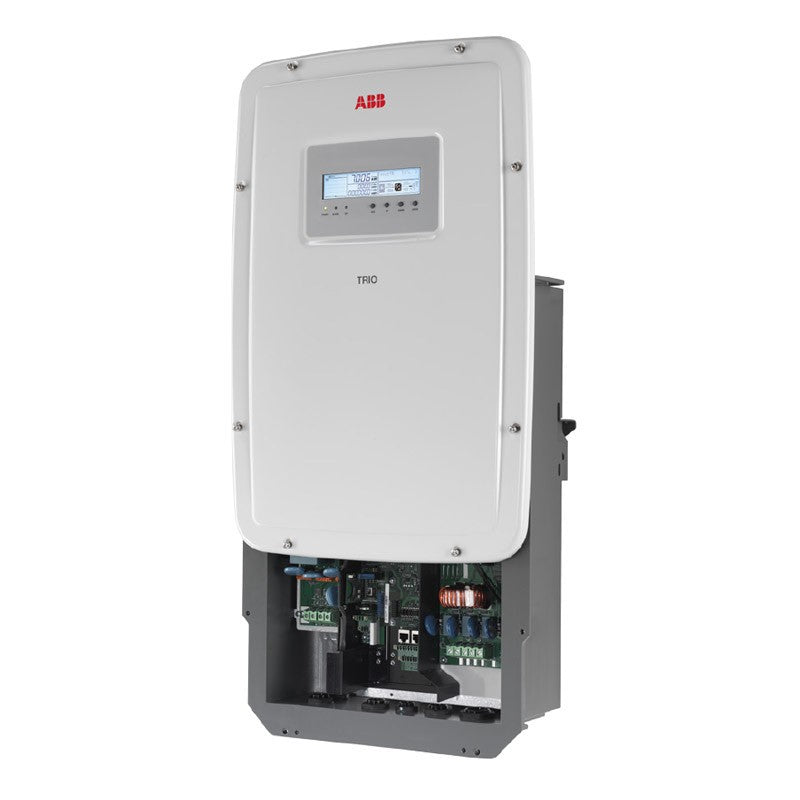

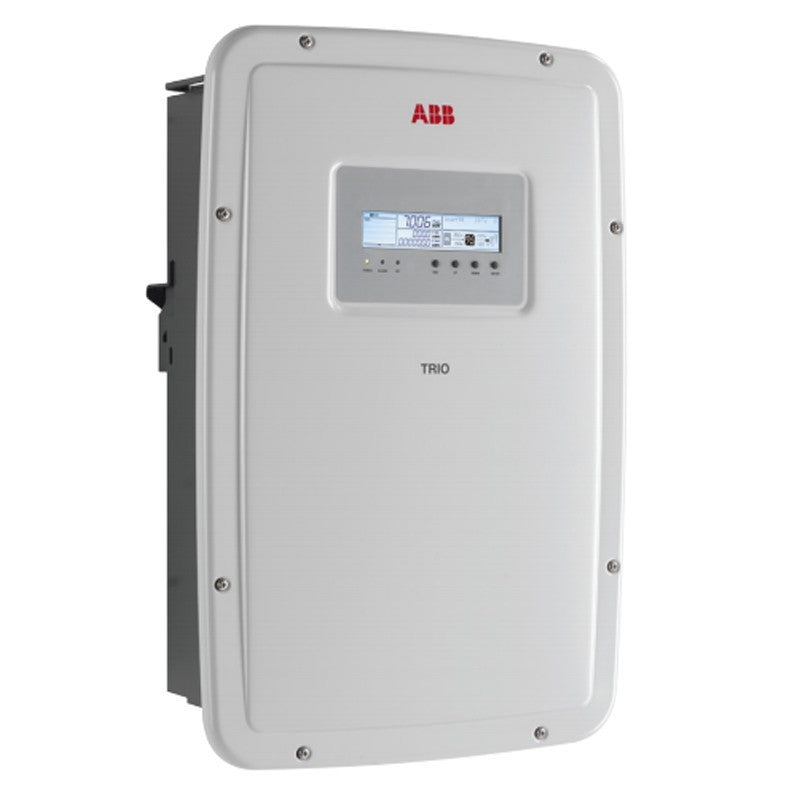

The all-in-one residential three-phase TRIO-5.8-TL-OUTD inverter deliver performance, ease of use and installation, monitoring and control. With their 98% peak efficiency and wide input voltage range, the residential TRIO inverter means flexible installations and powerful output.

Highlights

• Three-phase bridge topology for DC/AC output converter

• Transformerless topology

• Two independent MPPT channels for TRIO-7.5 or TRIO-8.5 allow optimal energy harvesting from two subarrays oriented in different directions (one MPPT channel for TRIO-5.8)

• Flat efficiency curves ensure high efficiency at all output levels enabling consistent and stable performance across the entire input voltage and output power range

• Wide input voltage range

• Remote inverter upgrade

• Reactive power management

• Natural convection cooling for maximum reliability

• Outdoor enclosure for unrestricted use under any environmental conditions (IP65)

• Sliding cover for the easiest installation and maintenance

• Data logger and smart grid functionalities integrated on expansion cards:

• PMU expansion card option, with external sensor inputs for monitoring environmental conditions and additional RS-485 for Modbus protocol
• Ethernet expansion card option with integrated web server and remote monitoring capability via web portal (Modbus/TCP supported)

• Availability of auxiliary DC output voltage (24 V, 100 mA)

• Allow sale if not in stock
  Yes
• Delivery up to working days
  2
• European efficiency percent
  97.4
• Input voltage range V
  320 - 800
• Inverter type
  Standard
• Item size LxWxH mm
  641 x 429 x 220
• Item weight kg
  25
• Manufacturer
  ABB
• Max efficiency percent
  98.0
• Max input current A
  18.9
• Max input power kW
  5.95
• Max input voltage V
  1000
• Model
  TRIO-5.8-TL-OUTD
• MPPT number
  1
• Operating temperature C
  -25 / +60
• Output power kW
  5.8
• Phase number
  3
• Product type
  Inverter
• Protection degree
  IP65
• Warranty extension 10y
• Warranty extension 15y
• Warranty extension 20y
• Warranty years
  5 (optional up to 10)
