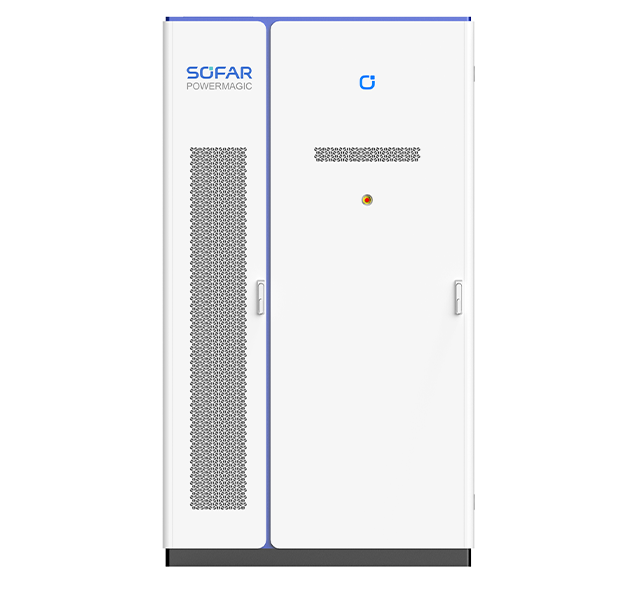

Elektros energijos kaupimo įrenginys Sofar Energy Storage Cabinet ESS-215kLA-SA1EU

Download Sofar C&I ESS PowerMagic Presentation

Sofar Energy Storage Cabinet: Versatile, Scalable and Safe Energy Storage for Commercial and Industrial Use

The Sofar Energy Storage Cabinet offers reliable backup power and seamless integration with renewable energy systems (if needed). With its comprehensive safety features, advanced monitoring capabilities and easy-to-use design, this cabinet is the ideal choice for challenging energy storage requirements.

Modular Design: The cabinet supports flexible expansion of both AC and DC capacity. Up to 6 cabinets can be connected in parallel on the AC side to cover a power range from 215kW to 1290kW. In addition, capacity can be increased by adding up to 3 battery cabinets on the DC side, providing 2 to 8 hours of storage capacity.

Grid-On/Off Auto-Switch: The cabinet seamlessly switches between grid-connected and off-grid operation, enabling efficient and flexible energy management.

Advanced Safety Features: The cabinet incorporates a 3-level fire suppression system (FSS), flammable gas emission control, and explosion vents to ensure the highest level of safety.

Intelligent Energy Management System (EMS): The multi-function EMS enables real-time monitoring, intelligent control, and quick response to off-grid situations.

Easy Installation and Maintenance: The overall system design prioritizes ease of installation, operation, and maintenance to provide a hassle-free experience for users.

Product warranty - 24 months

• Warranty extension from 24 to 60 months can be purchased at 1.5% of the product price per year

• Warranty extension from 60 to 120 months can be purchased at 2% of the product price per year

• Warranty extension should be purchased at least 180 days before its expiration date

• Allow sale if not in stock
  Yes
• Battery type
  LFP
• Cycle life
  6000
• Delivery up to working days
  60
• Item size LxWxH mm
  1350 x 1450 x 2320
• Item weight kg
  2500
• Manufacturer
  Sofar Solar
• Max charge power kW
  138
• Max discharge power kW
  138
• Model
  ESS-215kLA-SA1EU
• Nominal capacity Ah
  280
• Nominal charge power kW
  125
• Product type
  Energy storage
• Scalable
  up to 3 battery cabinets
• Total energy kWh
  215 (5Pack)
• Usable energy 90 percent DOD kWh
  n/a
• Warranty years
  2

Gamintojo specifikacija
