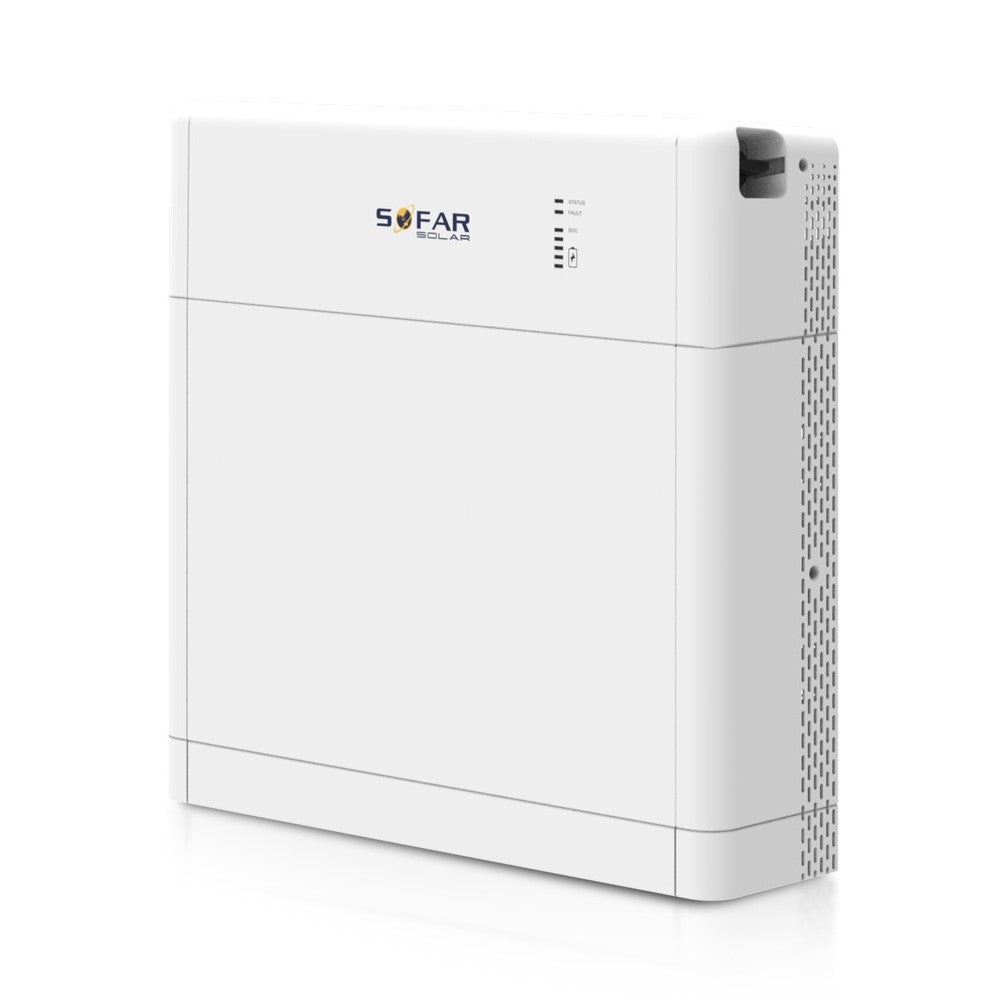

Elektros energijos kaupimo įrenginys Sofar BTS E5-DS5

Intelligent residential energy storage system

SOFAR's newest low-voltage battery system consists of up to 4 LiFePO4 battery modules, and one battery distribution unit.

The battery capacity can easily be expanded through the system's modular, stackable design. In combination with click-to-connect cables, installation is both fast and user-friendly. Up to two systems can be connected in parallel, amounting to 20 kWh of energy storage capacity.

The BTS series is compatible with SOFAR's HYD 5K–20KTL hybrid and ME 5K–20KTL battery inverter series.

Fully modular design, convenient for installation and transportation

Built-in battery pack balance management unit, increases battery capacity

Flexible battery capacity expansion

Extremely low battery self-consumption in sleep mode

Supports one-button startup/shutdown functions

Energy storage specially for ME / HYD 5K...20KTL-3PH inverters

• Allow sale if not in stock
  Yes
• Battery type
  LFP
• Cycle life
  6000
• Delivery up to working days
  2
• Item size LxWxH mm
  708 x 170 x 680
• Item weight kg
  59
• Manufacturer
  Sofar Solar
• Max charge power kW
  2.8
• Max discharge power kW
  2.8
• Model
  BTS E5-DS5
• Nominal capacity Ah
  100
• Nominal charge power kW
  2.5
• Product type
  Energy storage
• Scalable
  up to 4
• Total energy kWh
  5.12
• Usable energy 90 percent DOD kWh
  4.75
• Warranty years
  5

Gamintojo specifikacija
